Thermal imaging is an indispensable part of security and surveillance applications due to its advantages . This technology is successfully used for protection and detection of fever and increased temperature. We offer you optimal solutions for the individual use of thermal imaging cameras to measure body temperature. Depending on the area of application, different types of thermal cameras are suitable: starting with portable dual thermal imaging cameras and thermal tablet, systems with a measuring range in a short distance, up to high-end solutions with maximum utilization of the measuring range and precise evaluations.

Please also have a look at our optional products.

portable-dual-thermal-camera

1

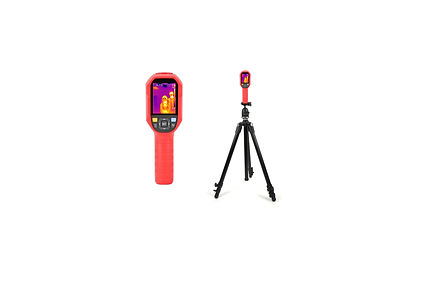

Portable dual thermal imaging camera

The portable dual thermal imaging camera can be used for any application. It is characterized by a quick setup and easy handling.

  • real-time body temperature measurement

  • thermal resolution: 160x120

  • optical resolution: 640x480

  • NETD ≤ 50mK

  • accuracy: ±0.5ºC

  • temperature measuring range: 30º ~ 45ºC

  • information light for excess temperature

  • automatic image acquisition with acoustic and optical alarm

  • Monitoring from external monitor via PC

  • Measuring range: 1 m - 1.50 m


fave-temp-talblet-fever-screening

2

FACE Temp: Thermal Tablet

By means of the Thermal Tablet the contactless and automatic thermographic capture of faces is possible within a few seconds. Visual and acoustic warnings are given when the defined temperature limit is exceeded.

  • biometric access control reader

  • Identification by face recognition

  • accuracy: ±0.3°C

  • fever and mask detection

  • 7" IPS colour touch screen

  • capacity: 22.400 faces, 100.000 records




3

Fever measuring system

This fever measuring system solution is a system for remote measurement of body temperature. Here, if necessary, it is possible to search for faces with the corresponding temperature in order to perform a second check.

  • dual IP thermographic camera

  • thermal resolution 400x300

  • optical resolution: 1920x1080

  • high measuring accuracy: ± 0.3°C (with Blackbody)

  • temperature measuring range: -20ºC ~ 60ºC

  • temperature stability: ±(0.1-0.2)ºC/ 30 min

  • monitoring and management software

  • measuring range: 2 m - 5 m

4

Fever measuring system Plus

Our efficient high-end solution in the field of thermal technology centralizes the various measuring points and can record flows of people up to a distance of 35 meters.

  • real-time body temperature measurement

  • high measuring accuracy: ± 0.3°C (with Blackbody)

  • possibility to save images

  • detection of hidden faces

  • simple deployment

  • recording of entire flows of people

  • receiving event notifications, alarm buzzer, pop-up windows

  • incl. NVR: 4 channels up to 8 channels

  • incl. monitor

  • measuring range: 1 m - 15 m



Optional products

We also offer complementary options to our thermal imaging camera solutions:

  • NVR recorder with face recognition, up to 20 frames / second, storage of up to 10,000 face images (incl. mouse, cable)

  • monitor, especially for video surveillance, reaction time: 5ms, no image distortion (incl. cable)

  • tripod for mobile mounting of the camera
